PUMP (REED) ORGAN SUPPLIES
Part Description: Part Number Price
Stops-
Black enamel finish, without face
Straight-

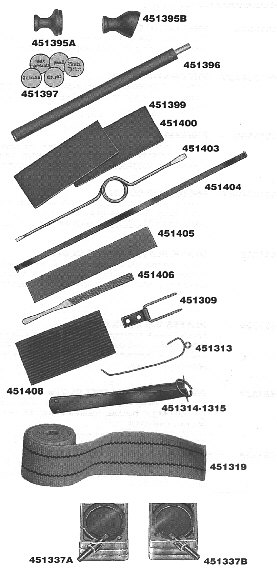

Each 451395A in graphic DA445
$ 5.85 np
Straight-
Dozen 451395A in graphic DA445
$ 62.42 np
Beveled- Each
451395B in graphic DA446
$ 7.85 np
Beveled- Dozen
451395B in graphic DA446
$ 62.42 np
Stop
Knob Faces
Celluloid,
7/8 inch diameter 451397 in the graphic
CLICK
HERE
to
see listing of knob faces.
Stop Knob Rods-
Try saying that in a hurry :-)
Black
enamel, 9/16 inches diameter
7 inches long with
shoulder
451396 in the graphic
DA449 $ 4.90 ea. np
Dozen
DA449
$ 36.00 np
Bellows Valve
Flap- Leather- Pair
Must be ordered with a
other items only
2-1/4 inches wide by 14 inches
long DA440 $ 9.80
/ pair
2-3/4 inches wide by15 inches long
DA441 $ 12.00
/ pair
Reed Hook and Screwdriver-
Used to pull reeds from reed organs
451403 in the graphic
SH713
$ 3.80 np
"T" Handle Heavy Duty Reed Hook DA442 $ 10.00 np
Reed
Scraper-
For tuning pump organ reeds-- 451404
in graphic
SH714
$ 17.85 np
Reed
Slip-
Stainless Steel
451405 Not
Available
Reed File- 451406 Not Available
Reed Organ Pallet Rods-
3/16 inch diameter by 5 1/4 inches long
SH706
$ 1.00 ea.
np
100 rods
SH706
$ 15.00 np
11/64 inch diameter by 4-1/2 inch long-- 100 rods
DA427
$ 9.50 np
Reed
Organ Valve Springs- Spring loads the Pedal bellows
3 1/2" long 451313A in the graphic
SH719-A $ 11.10
/ doz. np
4 1/2" long 451313-B in the graphic
DA444 $
2.10 each np
Reed Organ Pedal Hinges- 451309 in the graphic SH726 $ 5.80 ea. np
Reed Organ Wood
Barrel Shaped Rollers
Used on old pump organs instead
of casters-- Set of four--
SH701
$ 16.00 np
Reed Organ and Player Piano
Bellows Springs-
Outward pressure-- If in
doubt, replace them.
May come with ring attached
to make installation easier.
8 lb. Thrust- 8" long- 451314 in the graphic
SH8008
$ 11.90 np
6 lb. Thrust- 8" long- 451314 in the graphic
DA272
$ 28.75 np
15 lb. Thrust- 8" long- 451314
in the graphic
DA273
$ 15.90 np
14 lb. Thrust- 10"
long- 451314 in the graphic
DA274 $
60.10 np
20 lb. Thrust- 12" long- 451314 in the graphic
DA276 $
62.00 np
Reed Organ and Player Piano Bellows
Springs-
Inward pressure- 8
lb, 8" long- 451314 in the graphic
SH0880
$ 9.80
np
Inward pressure- 5 lb,
8" long- 451314 in the graphic
SH0881
$ 8.75 np
Inward pressure- 12 lb, 8" long-
451314 in the graphic
DA271
$ 24.00 np
Reed
Organ pedal webbing- 2 inches wide
Connects
pedals to pumping bellows.
Used as hinges
on bellows also-
Sometimes used to connect
pedals to bellows. 451319 in the graphic above
DA443 $
2.00 / foot np
Reed Organ Pedal Mats-- 6-1/2 inches
by 10-1/2 inches-- Ruber-- Pyramid grid
DA1055 $ 10.35 per pair np
4 Inches by 10 inches
SH607A
$ 9.45 np
Old
Part Number as in graphic above 451408
Used Ivories- We have a limited supply of 1 3/4 inch used ivory key top heads for pump organs $ 6.00 ea np
Reed Organ Sharps--
Humped
Back-- Very hard to find-- 3-1/2 inches long
DA433
$ 4.80 ea. np
Dozen
DA433
$ 32.00 np
Pneumatic
Cloth Self-Adhesive Hinges- For small pneumatics
1-1/4 inch cloth circles with pressure sensitive label coating.
100 per roll
DA685 $ 14.10
np
Reed Organ Pedal Return Spring
9 inches long, 8 lbs. Outward pressure
DA287
$ 19.65 np
PNEUMATIC,
BELLOWS, AND RESERVOIR CLOTH
Used
in Reed, Organs
GLUE, COATINGS, AND LUBRICANTS
VACUUM PUMPS
Reed Organ Vacuum Pump--
Off / on switch also has volume control
knob which electrically
regulates motor
box. Installation is very simple.
This pump is aimed at the Reed Organ in that volume is the issue more than
inches of vacuum. Do not use a player pump
on a Reed Organ for best results.
A two
inch hole is bored in the top of the chest board to the right of the
"paddle wheel" termolo (if you have one.
The flange is screwed down with
connecting
check valve and suction unit. Can be installed in a short time for
someone with basic mechanical skills. The only dismantling
is to take off the
back cover of the organ.
A one way valve is included so that the organ can
still be played with the foot pumping pedals.
CAUTION: Two issues have come up recently.
1. This product is a utility item. It is function
based, not pretty to look at.
If you need to have your pump to look like it would fit in
the dash
of a Ferrari, please do not
order this pump from us.
2. Though it is
designed to be low noise, it DOES make some noise. This is
caused by the high volume of
air being drawn off the organ. Pump organs
have very high air flow due to all the reeds
that are open at once. This is
also why a player piano pump is not safe to use on a pump
organ. A player
piano pump has much higher vacuum and low flow, so player pumps are
often a bit quieter.
If you use a player pump on a reed organ it will destroy
the treble reeds by over driving
them. You will have the best results by
locating this pump at a distance from the organ
and using a section of
plastic pipe to connect it to the organ. Control wires will also
have to be
extended if you do this. Several of our customers drilled a hole in the floor
and located the pump in the
basement. I have done this myself with good
results.
If this all frightens you, please do NOT buy this pump. There is
the usual 20%
restocking fee if you return
the pump, and possibly NO refund if we cannot
resell the pump in "as new" condition.
Caveat Emptor !!
Having said
this, we have had almost no returns on this pump. Innovative and
thoughtful customers find a way to use it and are delighted.
We have had many
kudos on this pump.
Measures 5 3/4 inches by 5 3/4 inches by 9
1/2 inches
DA448 $
263.00 np
ORGAVAC Reed Organ Vacuum Pumps
Price $ 282 plus shipping
Price $ 497 plus shipping | Lee Silent “ORGAVAC” Reed Organ Suction Units Our Lee Units completely eliminate tiresome foot pumping while at the same time improving the performance of almost any reed organ. These compact units are easily installed and need not alter the organ’s appearance. Sizes are available to efficiently power the small parlor organs and melodeons as well as the larger church types (Estey) with sub bass, tremolo and couplers. They have sturdy reliable motors with specially designed aluminum fan assemblies made for these units. They are precision balanced and shock-mounted in insulated enclosures for vibration-free operation. Flanges, flexible duct, hardware and under-keyboard switch (wired into the unit) are all supplied, together with detailed instructions for installation. Everything you need is included. International
shipments (Except Canada)-- |
A1127 Arndt Delron Flanges Our flanges are available in four sizes 4”, 3”, 2 ½” for use with flexible duct and 1 ¼” for vacuum hose. All are supplied with gaskets. A reasonably-priced alternative to aluminum flanges In stock for same day shipment. SEND MAIL for prices | SHIPPING: We
will NOT refund your customs cost on any pump Because
of the possibility of abuse to these units, |
BOOKS ON REED ORGAN RESTORATION
SH1679
-- PIANO TUNING
By J. CREE FISCHER
Paperback
5-1/4" x 8", 201 pages 17 lessons starting with notes on the
general construction
of the piano, regulating and repairing, setting the
temperament, the study
and practice of piano tuning, and also tuning
and repairing reed organs.
Finally a lesson on Professional Hints.
$
17.50 np
SH1646--
THE REED ORGAN
A 22 page booklet packed with information
on the care of the reed organ.
Easy remedies are suggested for common reed
organ problems. The technician or
owner can make good use of the interesting
description of the various stops,
and how to use them for the best musical
effects.
Originally published by Sears Roebuck & Co. in 1910.
Not
Available
SH1673--
THE REED ORGAN: ITS DESIGN AND CONSTRUCTION
By H. F. Milne
This 168 page soft-bound book details a vast amount of information of how reed
organs are constructed. It is a practical guide for craftsmen with instructions
for
making new reed organs and chapters included on tuning and voicing.
$
32.00 np
SVN10GL--
Gellerman's International Reed Organ Atlas
Robert F. Gellerman- 320 pages-
Paperback
This
second edition of Gellerman's classic reference work is
a must for collectors
and aficionados of reed organs. Its aim is
to present a complete listing and
brief history of every
manufacturer of reed organs in the world as an aid
to the collector.
In the 13 years since publication of the first edition,
hundreds of
new names and historical facts have come to light and are
included
in this revised edition. 89 illustrations. 104 photos.
$
27.00 np
SVN12GL--
The American Reed Organ and Harmonium
Robert F. Gellerman
When
The American Reed Organ was published in 1973,
the instrument was an almost
forgotten artifact of the
nineteenth century. While many reed organs had survived,
most had been stored away and allowed to deteriorate and
gather dust.
The book helped revive interest in these
instruments and led to the formation
of The Reed Organ
Society which provided focus for news and research on the
subject. As interest continued to grow, a number of other
books appeared,
but The American Reed Organ remained
the standard work on the subject for
many years. Book The
American Reed Organ and the Harmonium is more than just
a new edition of its predecessor. It has been completely
rewritten and
expanded to reflect continuing research on
the subject. The extensive history
traces the free reed back
from its origins in China about 2000 BC through
its development and perfection as a popular
instrument for homes, churches,
and music halls, until it reached its peak in the 1890s.
The amazing photographs
chosen to illustrate the text will show how important a part
of everyday life
these organs had become. There are photos of organs being
transported across
the prairies in wagons and pictures of the "chaplain's organs" that
went to
both World Wars with our servicemen. There is one historical photo from the
official
US Navy files which shows a chaplain's organ being used in a religious service
on the bombed-out hangar deck of the USS Franklin in 1945. A large sampling
of the
advertising and catalog offerings by the major organ manufacturers
of the time, as
well as post cards, cartoons, and holiday greetings featuring
reed organs will add to
your appreciation of these fine instruments.
Covers
the history, construction, manufacturing, tuning, restoration, and music of
these
classic American and European parlor instruments. -- Paperback
$
31.00 np
Reed
Organs Restored by our Customer

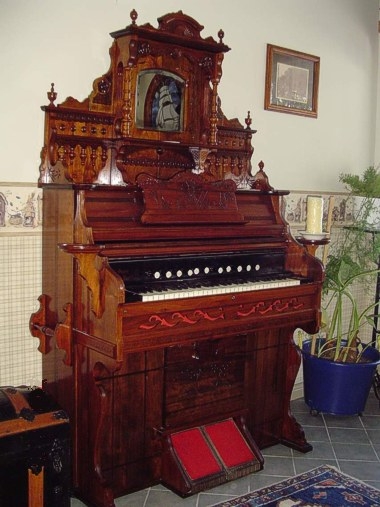

Restored
by Thomas Becher
of Saarbruecken, Germany
It
appears that Thomas had to make
a bench and foot pedals for the organ.
Estey Hybrid
Here is an amazing and impressive
conversion of an old Estey combo.
"You might be interested in seeing
my Estey organ which I have put
tegether. 3 manuals of Eastey and
2 of electronic."Colin Adamson
Estey three manual and
Yamaha PSR 8000
Yamaha PSR 500 MIDION/OFF THUMB PISTON Pivot points Swell
to Great MECHANICAL COUPLER MECHANISM.
3 TOE PISTONS AIR TRUNKING SNARE DRUM
& CYMBAL & Sustain TO EXT.SOURCE PEDAL WORK COUPLED
TO 1ST AND 2ND MANUALS 3 SWELL PEDALS AND MIDI’D
TO 5TH MANUAL FOR 1, 2, AND 5.
Comment
by Steve Van Nattan
So, it can be done, and it looks very classy.
Let's
see another one soon from YOU.
ALSO, SEE--
PLAYER PIANO PARTS AND TOOLS--
Many items are interchangeable with your reed organ.LEATHER FOR MANY APPLICATIONS
Used in Player Pianos and Pump, or Reed, OrgansWe buy old electric organ vacuum tubes SEND MAIL with number
on the side of your tubes. We will have them tested and let you know
which ones we will buy after you mail them to us. They must test
at least 85% good for us to buy them.
VISIT OUR PAGES ON PLAYER REPAIR AND ADJUSTMENT:
WE OFFER A PLAYER PIANO WEB RING FOR YOU TO SURF.
YOU WILL FIND SOME EXCEPTIONAL PEOPLE TO SERVE YOU.
See the bottom of the page.OUR MENU OF PLAYER PIANO INSTRUCTION
68. Varmints, Lubrication of Player Pianos
69. Adjustment of Player Pianos
ORDER BY PHONE WITH CREDIT CARD
CALL
TOLL FREE: (800) 338-8863
If there is no answer, please leave
a message- we do answer our voicemail
OR:
Go to Mail Order Form for printing:
Online help available
BACK TO PIANO TITLE PAGE
NP
