GRAND PIANO
LEGS AND LYRE

And Rods and Braces



NEW PIANO COVER OPTIONS !
VINYL IN SAND, WHITE, AND BURGUNDY
HEAVY DUTY MACKINTOSH AND SUPREME



You will need to compare very carefully to be sure you are getting the right legs and lyre.
Please send email or phone. We do not like returns, so we want to talk about this.

If you were looking for Grand Piano Pedals CLICK HERE.

For pedal Hardware CLICK HERE

For General Piano Hardware CLICK HERE

Grand and Upright Piano Desks CLICK HERE



EXHAUSTIVE WORD INDEX OF THE WHOLE SITE:

   Search this site or the web        powered by FreeFind

  Site search Web search

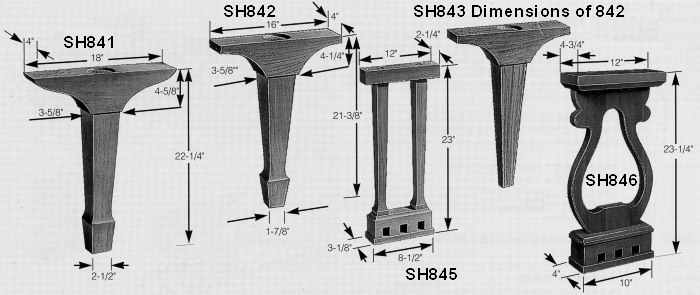

GRAND PIANO LEGS

Grand legs-  Spade leg- Most common-
         Grands over 6 feet long- 22-1/4 inches high by 18 inch top piece               SH841              $ 158.00 each
         Grands under 6 feet long- 21-3/8 inches high by 16 inch top piece             SH842              $ 125.00 each

Grand legs-  Straight tapered-
         21-3/8 inches high by 18 inch top piece- Ferrule suggested                        SH843               $ 121.00 each

Grand lyre-
         Straight style-                                                                                            SH845               $ 258.00 each
         Traditional "Period" literal lyre shape- call for availability                             SH846               not available at this time
                  Read our instruction on repairing your grand lyre.

Find Grand Piano round mounting plates here

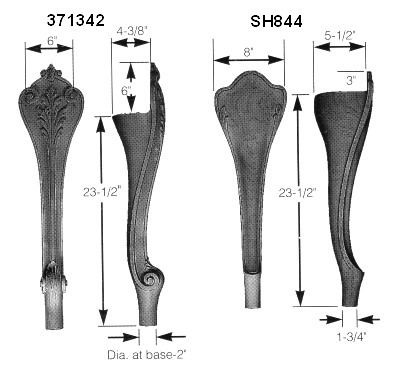

Grand legs-  French Provincial-
         Louis XV and French legs are hard maple, hand worked, sanded,
         and ready to finish.  Legs drilled ready for casters.
         You will need to route out the top for mounting plates                                    SH844              $ 180

Grand legs-  Louis the XV- See 371342 in the graphic above
         You will need to route out the top for mounting plates                                    SH815               $ 190



Square Grand Legs and Desks available below



LYRES

We hear over and over of movers losing the whole lyre assembly with the
mounting brass hardware. The lyres and kit below are matched and complete.
You may have to do some fitting tricks to make the lyre work. But, this is
the only complete outfit we can find anywhere.

Graphics are seen up this page.

Straight line Spade Foot Style Lyre
              Hard maple or birch-- 23 inches high, top bar is 12 inches by 2-3/8 inches
              A cabinet maker may be able to remove the top bar and shorten the overall
              height of the lyre if a shorter lyre is needed.
              Bottom box is 8-1/2 inches wide-- 3-1/8 inches deep.
              No metal parts included                                                                                      SH845              $ 258.00

Louis XV Style Lyre- For French Provincial also and Square Grands
              Lyre can be disassembled by removing lag bolts
              so that overall height can be altered.
              Hard maple or birch-- 23 inches high, top bar is 12 inches by 4-7/8 inches
              Bottom box is 10 inches wide-- 4 inches deep.
              No metal parts included   call for availability                                                          SH846              Not available at this time

Solid Brass Lyre Hardware Kit for a used or new lyre
              This is needed especially where movers lost the whole lyre.
              This kit is designed to go with SH845 and SH846 above-- NO SUBSTITUTES
              The lyre is NOT included in this kit. You may pick one of the two lyres above.
              Consists of:
              1 set of part number SH998 pedals
              1 Pair of SH770C Lyre Braces
              1 Set of SH773 Pedal Rods
              3 Pairs of Pedal Mounting Brackets (to be mounted in the lower box)
                                                                                                                Kit Part Number- SH849           $ 241.00

If your grand has only two pedals, use these lyres, but leave one pedal only as decoration.



GRAND PIANO LYRE BRACES AND PEDAL RODS

POLICY-- CAUTION: We have had so many rods returned that we are using a harsher policy
on returns. We now charge a 50% restocking fee on these rods. If the rods turn out
to be too long, try to shorten them and make them fit. In fact, there are ways to make
a rod fit which is too long by adding other hardware to it. If you are not willing to take
responsibility for things, or if you are not very clever mechanically, do not order
these rods please.

Graphics seen up this page

Lyre Braces-  Brass plated  steel-  Grand- See nos 30558A and B in graphic above
              You may have to reset the mounting points.
              Perfect fit using old holes is RARE
              If you must return them, the 50% restocking fee applies.

              21 inches long- Pair-                                                                                              SH971          $ 25.50

Lyre Braces-  SOLID BRASS-  Grand- See nos 30558A and B in graphic above
              You may have to reset the mounting points.
              Perfect fit using old holes is RARE
              23 inches long- Pair-                                                                                               SH771          $ 63.00
              21 inches long- Pair-                                                                                               SH770C       $ 56.50
              14 inches long- Pair-                                                                                               SH770B       $ 49.75
              12-13/16 inches long- Pair-                                                                                     SH770A      $ 33.25

Pedal rods-  Grand-
              Sold Brass with adjustable brass collar and set screw- 21½" long-
              Like 301900 in graphic above-- Set of 3-                                                                SH972           $ 96.25
              19-3/4"- 5/16" diameter- Set of 3- Adjuster nut and tip not shown above                 SH773           $ 94.25

 Adjustable from 20 5/8" to 21 3/8"                                                                             PT81AB         $85.00


STEINWAY Lyre Braces                                                                                                  SH859          $ 72.500 a pair



GRAND AND UPRIGHT DESKS AND LID PROPS

PEDAL MOUNTING HARDWARE

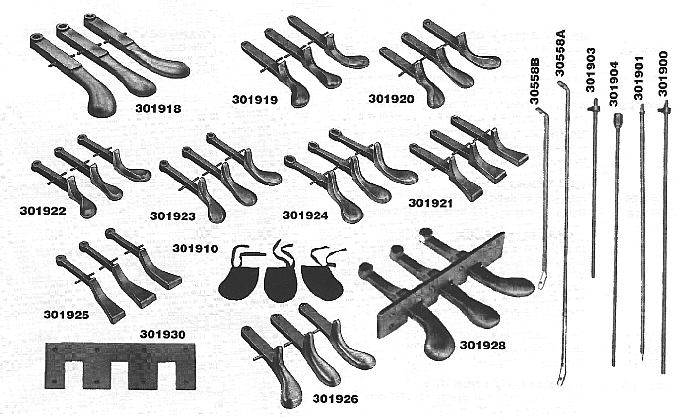

GRAPHIC TO SEE THE RODS AND BRACES





OLD TIME LEGS, LYRE, DESK, AND BENCH

There is no way around it. These are well made products, but they are very expensive. This is because there
are so few ordered due to the few number of old pianos being restored. We are talking here about going
clear back to the Victorian Era in style.

CAUTION:

ALL products below are unfinished.

Returned products in this section are subject to a 30% restocking fee. Our supplier will determine if
the product was defective before being shipped, and their verdict is final. Anyone who damages the
product and tries to get a refund will NOT receive ANY refund. Returns MUST be arranged by us, not
our supplier.

Prepayment is required. No credit card purchases accepted on the Old Time products.

These prices may not be final. We will check with our supplier to see if a price increase has been added.



LEGS AND LYRE MATCHING

If you have a square grand needing four legs and a lyre,
SEND MAIL
for a quote on adding one leg to the set.

Unfinished set of three legs and the lyre are made of poplar. Legs and lyre are routed to receive your existing mounting hardware. If your piano does not use the round cast iron mounting disks, we can supply them to be paid for separately.

Take very careful measurements of your piano and do the math with the following dimensions. If, after you receive the products, something is wrong, the restocking fee WILL be charged.

Find Grand Piano round mounting plates here



Leg measurements:
        Height- 22-3/4 inches
        Width- 5-1/2 inches
        Length of top piece- 15-1/4 inches

Lyre measurements
        Height- 20-1/2 inches
        Base Depth- 5-1/2 inches
        Base Length- 12 inches

PRICE:

              Full set - $ 2950
              Three legs - $ 2000
              Lyre only - $1050

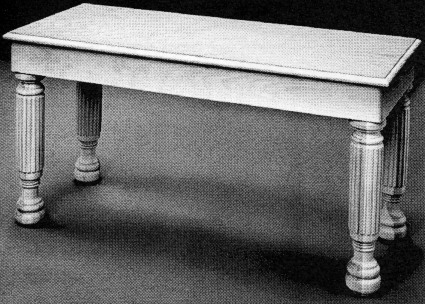

COMPLETE PIANO BENCH
MATCHING THE LEGS ABOVE

Quality unfinished solid birch is used. Music storage area is under hinged lid. Hardware included.

Height- 18-1/2 inches - Width- 15-1/2 inches - Length- 36 inches



PRICE: $ 855











PIANO ARTIST BENCH LEGS
MATCHING THE PIANO LEGS ABOVE

These legs are ONLY made to fit on artists benches.
You will need to do any retrofitting needed.

Height- 15-1/2 inches

PRICE: $ 345

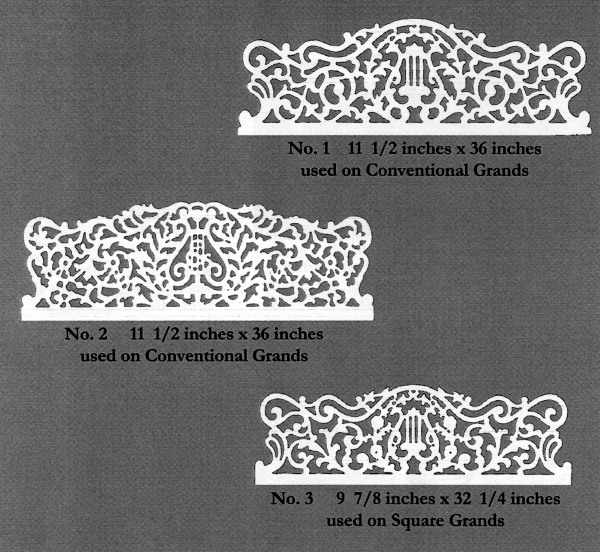

OLD TIME DESKS

These are very ornate, and much time goes into making them. Thus, the price is very high. As far as we know, this is the only Square Grand desk anywhere.

The desks are made of seven ply birch and faced on both sides with maple, mahogany, or rosewood.

Special sizes not possible. You may need to relocate the hinge points to fit the desk if you wish to use one of these.







PRICE: All three styles same price

              Maple-- $ 530
              Mahogany-- $ 565
              Rosewood-- $ 755





RETURN POLICY ON WOOD AND FURNITURE PARTS

When you receive wood parts which must be stained and finished,
EXAMINE IT BEFORE YOU PROCEED.
If there is any flaw which you cannot deal with, it must be returned.
If you alter the product, or if you stain it, we cannot return your payment.
Our supplier will not take back a product which has been altered of worked on.
Also, you must call us at (800) 338-8863 for instructions to return the product.
If you return it to us, we will deduct your shipping costs to return it to our supplier.
It must be returned to our supplier.
If you send it back without notifying us and following instructions, you may not
receive a refund if our suppler does not know you are our customer.
