GRAND PIANO HARDWARE



Ordering instructions at the bottom of this page

EXHAUSTIVE WORD INDEX OF THE WHOLE SITE:

   Search this site or the web        powered by FreeFind

  Site search Web search

ORDERING INFORMATION:

MINIMUM ORDER:
Minimum Order $20

SHIPPING POLICY:
     Priority Mail shipping for most items. UPS by request.

You MUST browse the Catalog area, and try to learn what you want. We no longer search our catalog for you.

Have this information ready:
     1. Description of parts
     2. Part Numbers
     3. Prices
     4. Dimensions where needed
BEFORE you call us please.

Make sure you are in the catalog area for your kind of piano--
Such as Grand Pianos,
Full Uprights, Spinets, etc.

If you are confused, call us for assistance.

If we do not answer the phone, we are probably here-- Just leave a message- we will return your call (it may not be the same day).
:-)

GRAND PIANO HARDWARE ON THIS PAGE--
Some Upright Part
Hinges and action mounting hardware for
upright pianos are found under other links listed on this page.

ELSEWHERE IN THE CATALOG:

UPRIGHT HARDWARE

BENCH HARDWARE

CABINET HARDWARE-- Cabinet parts and Hinges

SMALL CABINET PARTS-- RUBBER, BRASS, WOOD, AND METAL

GRAND AND UPRIGHT PIANO DESKS

GRAND PIANO PEDAL HARDWARE

PIANO AND PIANO BENCH LEGS

PEDAL HARDWARE--  Including springs for pedal trap mechanisms

GRAND PIANO PEDALS

UPRIGHT PIANO PEDALS

FALLBOARD AND SOUND BOARD DECAL PAGE

GRAND PIANO ACTION PARTS

GRAND PIANO DESK HARDWARE

UPRIGHT PIANO DESK HARDWARE



GRAND PIANO HARDWARE

Part Description                                                                                                           Part Number            Price

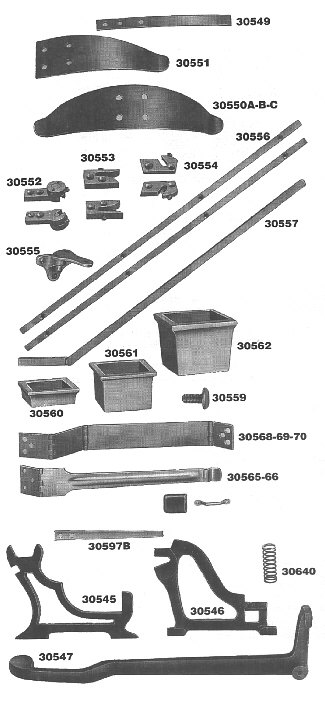

Grand Keyboard Spring--  Key cover
      comes to rest on this.  Old No. 30549   SH959         $  27.00

Grand Action Shift Springs--  Returns the
      key action frame after using quiet pedal.
      Blued Steel-  16 gage steel
      Length            Width     Old No.
         8 7/16"          1 3/4 "     30550A       SH962         $  17.50


Grand Fallboard (key lid) Hinges--
     The only grand fallboard hinges we can get at present
are about 1" square. Call for info and price.

Grand Desk Brass Slides--
      Desk slides on these- Pair
      Can be used to replace wooden slides.
      14 inch   (Old Part #- 30556)                 SH1072      $ 43.75

Grand lid support, (old part 30557)
      Solid brass- Hinged-
      Short arm 2", long arm 12"-                     SH935       $ 29.60
      Same as above but nickel
SH936       $35.00

 Grand Leg Ferrules--  These are much more substantial than the ferrules elsewhere on this page.
          Solid cast brass-- For nickel plated sockets, order these and send them off to be plated.

          Inside Dimension            Height              Metal                        Old Part No.                Ordering No.         Price
                    1 1/2"                         5/8"             Polished Finish        Graphic No. 30560A               SH964A        $ 36.50 each
                    1 3/4"                       1 1/2"            Polished Finish        Graphic No.  30561A              SH964B        $ 40.00 each
                       2"                             2"               Polished Finish        Graphic No.  30562A              SH964C        $ 65.00 each




Grand Desk Rest--

          Solid Brass---  7 1/8 inch from knuckle to end
          Complete with staple, rubber cap, and screws.
          Satin Brass Finish      Old Part Number  30565                           SH941      $ 79.50
          Polished Nickel         Old Part Number  30566                           SH942      $ 79.50
          Rubber caps only  (Cover parts)  Old Part Number  30567A      SH941C    $   2.00








Desk Support Hinge--
 Solid brass four flap hinge. In graphic, see 30568-69-70
          For desk that fold either forward of backward.  Furnished with screws.
          1 inch wide by 9 inch long-                  Satin Finish                                                                   SH940N    $ 82.50


Desk Butt (Flap) Hinges-- 1-3/4" by 1"
           Brass                                                                                                                                 SH567B      $ 11.25 each
           Nickel                                                                                                                                 SH567N       $ 13.00 each

Grand Quiet Pedal Lever--

This lever is underneath the piano and activates the keybed when the pedal is used.
           You may have to do some improvising to make it fit perfect. Old Part No. in graphic 30547      SH1074       $ 30.25

Steinway Sostenuto Pedal String                                                                                                      SH961         $ 23.00

Part Description                                                                                                           Part Number            Price

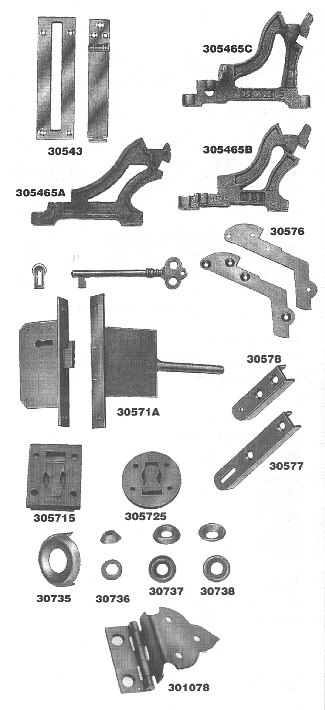

Grand Action Brackets--  Cast iron with screws--  Needed if one breaks
           Be sure the bracket in the picture is the same as yours.
           If the new brackets are shorter than yours, add shims of maple wood
           under the feet to lift the bracket into proper relationship with the rest of
           the action. Also, the hammer rail may need to be remade or shimmed
           to level the hammers with the action. Regulation will add the final touch.
           Aeolian-American No. 108 Type
           See 30546 in the above graphic              SH1076    $  18.55 ea
           Full set of three or four of either style                       $   14.00 ea


Grand Piano Lock--

Complete with plunger, escutcheon,
        (That's the little key lock diddly) and key.
        Satin brass finish--
        Selvage plate 5/8" by 4 1/16"
        Square ends to plate.
        Key alone fits many grand locks
        Grand lock with SQUARE end plates      SH965        $ 110.25
        Escutcheon only                                       SH965E     $    3.00
        Key only for grand locks                          SH965K     $  14.00

        Grand lock with ROUND end plates        Not available

Mason and Hamlin Style Desk Hinge

See Part Number 301078 in the graphic                                                                               SH1095      $14.00 each

Grand piano fall board lock key-- Steinway
        Solid brass with lyre design for Steinway grands before 1971                                               SH965KS    $ 58.00

Grand Leg Plates--  Cast iron, Set of 3 units (legs) -- Two interlocking plates to each unit.
               Round--  4 3/8 inch diameter                                                                                                 SH966      $ 97.50









Grand Agraffes
         Some high quality uprights also had grand piano type agraffes.          Go to the Restringing Page for agraffes and tools for them.

         See our Instructions on Agraffe Repair

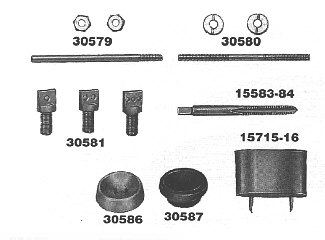

Grand Hammer Rail Prop--  Support piece in nearly all grand actions--
               2 3/4 inch length; set of 5 parts, nuts included              Old Part Number 30580B                                              SH1027           $ 22.50

Grand Hammer Rail Slotted Prop Nuts-   See in graphic above at top right                       SH925             $ 1.00 ea.

Grand Lid Support Cups--  Receive the top end of the lid prop
               Brass Finish--   Old Part Number 30586                                                                 SH938B              $ 9.50
               Nickel Finish--                             30586N                                                              SH938N           $  14.00
