PIANO CABINET HARDWARE
Mostly Upright, but some Grand Piano


Ordering Instruction at the Bottom of This Page

EXHAUSTIVE WORD INDEX OF THE WHOLE SITE:

   Search this site or the web        powered by FreeFind

  Site search Web search



ORDERING INFORMATION:

MINIMUM ORDER:
Minimum Order $20

SHIPPING POLICY:
      Priority Mail shipping for most items. UPS by request.

You MUST browse the Catalog area, and try to learn what you want. We no longer search our catalog for you.

Have this information ready:
     1. Description of parts
     2. Part Numbers
     3. Prices
     4. Dimensions where needed
BEFORE you call us please.

Make sure you are in the catalog area for your kind of piano--
Such as Grand Pianos,
Full Uprights, Spinets, etc.

If you are confused, call us for assistance.

If we do not answer the phone, we are probably here-- Just leave a message- we will return your call (it may not be the same day).
:-)



UPRIGHT PIANO HARDWARE IS ON THIS PAGE
Some parts here are used in Grand Pianos also.

Hinges and action mounting hardware for upright pianos
are found under other links listed here.

ELSEWHERE IN THE CATALOG:

GRAND PIANO HARDWARE

BENCH HARDWARE

SMALL CABINET PARTS-- RUBBER, BRASS, WOOD, AND METAL

GRAND AND UPRIGHT PIANO DESKS

GRAND AND UPRIGHT PEDAL HARDWARE

PIANO AND PIANO BENCH LEGS

PEDAL HARDWARE--  Including springs for pedal trap mechanisms

To Replace Upright Pedals

To Replace Grand Pedal

FALLBOARD AND SOUND BOARD DECAL PAGE

Grand Piano, Pedals, Lyres, and Legs and Lyre Hardware



CABINET PARTS

Learn how to use this hardware to repair your desk.

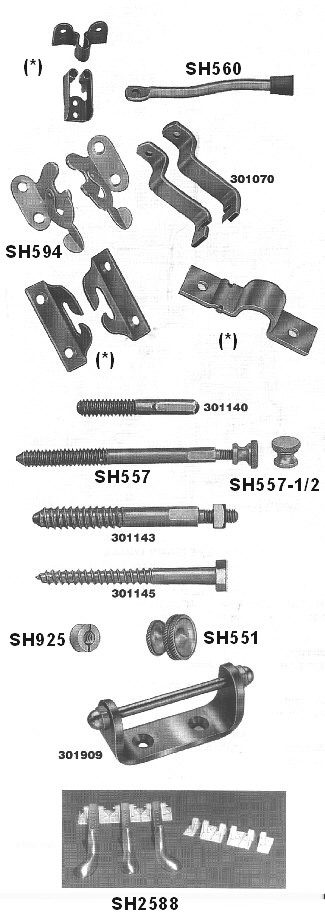

Part Description                                                                                                           Part Number            Price







(*) These items are best found at
Ace or True Value Hardware Stores

Lid Prop-- Lifts lid on uprights to
      allow more sound from the piano     SH560               $ 2.00

Front Flange Hooks-

      Pairs- left and right
      Replaces common hooks which
      hold the desk on the cabinet             SH594              $ 6.80

Fallboard Rod Clamp-
      Holds lever rod which acts a a hinge
      on many spinets and some uprights   3010725     Try Ace Hardware

Action Bracket Bolts- 3/8" diameter

    Bolts only-- Knobs included

Overall Length
Neck Length
New Part
Number
Price
4"
4 1/2"
5"
Knob Only
3/4"
3/4"
3/4"
- - -
SH557-4
SH557-4-1/2
SH557-5
SH557-1/2
$ 4.00 each
$ 4.00 each
$ 4.00 each
$ 2.50 each

Round Prop Nuts-
      For tight spaces where screwdriver removal is desired-- Found on some spinets
      Also found on grands on rail above hammers and elsewhere

SH925         $ 2.00 each

Grand Nose Bolt Brass Knobs- 1 inch Diameter-
      For more decorative appearance-

SH551         $ 5.30 each

Grand Lid Prop Hinge-
      Solid Brass, Satin finish- Anchors bottom end of lid prop-  301909 in the graphic
            but more massive than the one illustrated
      PKRH-5803     $ 31.80 each





Nylon pedal hinges for modern consoles and spinets- Old Part Number 30608 above
       Attach to the rear of the pedals.
   Set of six                                                                                   Discontinued

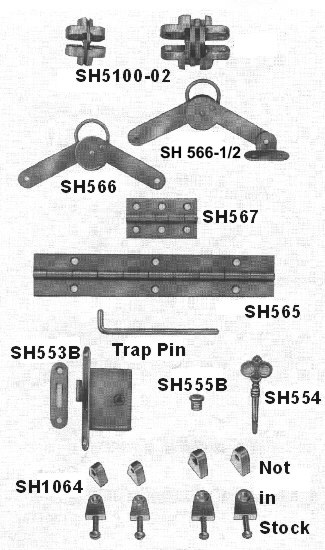

HINGES

Part Description                                                                                                     Part Number            Price

[ Repair- Chapter 7, #16 ]



The following items are

    not in order as shown

    in the graphic.

Upright Piano Locks- Set

    Includes solid brass lock and
      selvage, brass striker plate,

    key, and escutcheon
      Satin Brass                                   SH553B               $ 14.50

Escutcheon only-

    Brass                                           SH555B                $ 2.00


Striker Plate-

    Brass                                           SH556B                $ 3.50
      Nickel                                          SH556N               $ 3.75

Upright Lock Keys-

    Triangular                                     SH554                $ 2.50

Trap Pins- 3 inches long by .155 thick

    These pins are used to hold wood
      and metal pedal rods in their mounting
      points-  301074 in graphic              SH3568           $ 2.75 each



Music Desk Hinges

Height
Thickness
Old Part Number - New
Price
5/8"
1/4"
SH1064
$ 5.00 a pair

Grand Fall Board Hinges-- Sold in two sets to do one fall board, left and right
      Send digital photo of your hinge
      Two styles--                                                                                     Part Number SH1062 and 1066     $ 24.50 a pair

Strut Hinge

    Mount in place of upright top hinges. Holds top up and will prevent it from
      flopping backward and breaking off the top when it is opened.                                           SH1061            $ 2.00 each

Invisible Hinges- (We have them visible in the graphic above just for you :-)
      Used for fallboards (key covers) and key slips. Used on almost all old player pianos.
      Furnished with screws

Width
Part Number
Price
Nickel, 1" long by 3/8" wide
Satin Brass- 1" long by 3/8" wide
Nickel, 1 3/4" long by 3/8" wide
Satin Brass, 1 3/4" long by 3/8" wide
Satin Brass, 1 1/2" long by 1/2" wide
SH5100
SH5100-1/2
SH5101
SH5101-1/2
SH5102
$ 14.00
$ 14.00
$ 18.00
$ 18.00
$ 16.00

Knife Hinges- Nickel Plated-
      Quantity-- Pair for left and right
      Without Bracket                                                                                                          SH566                $ 21.75 / pair
      With Bracket attached                                                                                                SH566-1/2          No longer available

Piano Butt Hinge- Solid Brass- Used for Fallboards (key covers) and desks
      Quantity-- Pair
      1 3/4" long by 1" wide by .050 thick.
      Satin Brass Finished                                                                                                  SH567B            $ 9.95 per pair
      Nickel Finished                                                                                                          SH567N          $ 21.00 per pair

Mason and Hamlin Style Desk Hinge

      Solid Brass satin finish- 1-1/4" wide- 5 inches long                                                        SH1095               $ 13.25 each

Solid Brass Continuous Hinges-- 60" long

    Screws are not supplied. This is because the original screws would have come
      through the wood of the lid of the piano so that they almost reached the other
      side of the wood. If we sent screws that were slightly too long for your piano,
      they would come through the top of the piano- Horrible thought. So, YOU
      must take your old screws to a hardware store, and look for screws exactly
      like yours. Do not get them slightly longer to pick up more wood. Instead,
      fill the screw hole half full of tooth pick pieces and carpenter's glue to tighten
      loose screws.
      1-1/16th inch wide when opened. .040 gage. Holes drilled and countersunk.

    Satin Brass Finish                                                                                                       SH565B             $ 51.75

    Nickel Plated                                                                                                               SH565N            $ 95.50

Steinway Style Sectional Hinge
      An exact replacement. Consists of 11 sections measuring 5 inches length
      and one section measuring 4 inches held in place by continuous hinge pin
      that is 60-5/8 inches long. Opens to 1-1/8 inch.
                    Brass                                                                                                            SH565AB          $ 178.00
                    Nickel                                                                                                          SH565AN          $ 265.00



HINGES:

Old and New Part Numbers and Prices of the above Piano Hinges

Minimum order applies.
Single hinges not available without other items being ordered.
You must order using the New Part Number


Hinge Name or Description

Old Part Number
New Part Number
Price
Streight Style
569-1/2
569B
$ 32.95 ea.
569
569N
$ 49.95 ea.
Streight Style
2569-1/2
2569B
$ 28.75 ea.
2569
2569N
$ 39.95ea.
Bent Butt Style
669-1/2
669B
$ 36.50 ea.
669
669N
$ 44.50 ea.
Bent Butt Style
2669-1/2
2669B
$ 27.95 ea.
2669
2669N
$ 34.50 ea.
Steinway Straight Style
Hinge (Model D)
2771-1/2
2771-1/2B (Brass)
$ 31.25 ea.
2771-1/2
2771-1/2N (Nickel)
$ 57.70 ea.
Steinway Bent Butt
Hinge (Model M & L)
2771
2771B (Brass)
$ 33.00 ea.
2771
2771N (Nickel)
$ 43.25 ea.
Steinway Bent Butt
Hinge (Model S)
Similar to 2771 center of pin to inside bend 1 3/32"
2773B (Brass)
$ 38.00 ea.
2773N (Nickel)
$ 53.80 ea.
Steinway Bent Butt
Hinge (Model B)
Similar to 2771 center of pin to inside bend 1 3/8"
2774B (Brass)
$ 37.50 ea.
2774N (Nickel)
$ 50.00 ea.
Straight Style
2772 & 2772-1/2
Not Available
---
Bent Butt Style
Overall length- 5-3/4"
Center pin to inside of
bend 1-1/8"
2770
2770B
Brass only
$ 29.95 ea.
Top Hinge
572-1/2
572B
$ 18.90 ea.
572
572N
$ 27.50 ea.
Top Hinge
568-1/2
568B
$ 18.50 ea.
568
568N
$ 25.00 ea.
Bent Butt Top Hinge
1568-11/2
1568B
$ 19.75ea.
1568
1568N
$ 26.95 ea.
Butt Hinge
567-1/2
567B
$ 5.00 ea.
567
567N
$10.50 ea.

Solid Brass Hinge Pins-
      How will you know what size to order if you lost all your pins? Suggestion: Find a friend who
      has a detailed set of drill bits. Slip drills into the hole in your hinge until one is good and snug.
      Next, mic the drill bit to find the thousands. For that trick, you owe me a cup of coffee :-)

Length
Diameter
Finish
Part Number
Price
2 inch
2 inch
2 inch
1 3/4 inch
1 3/4 inch
1 1/2 inch
1 1/2 inch
.150
.150
.140
.150
.150
.117
.117
Brass
Nickel
Brass
Brass
Nickel
Brass
Nickel
SH3569A
SH3569B
SH3569H
SH3569C
SH3569D
SH3569E
SH3569F
$ 2.50 each
$ 3.50 each
$ 2.50 each
$ 2.50 each
$ 3.50 each
$ 2.50 each
$ 3.50 each
