REED ORGAN PARTS





ORDERING INFORMATION:

MINIMUM ORDER:
Minimum Order $20

SHIPPING POLICY:
     Priority Mail shipping for most items. UPS by request.

You MUST browse the Catalog area, and try to learn what you want. We no longer search our catalog for you.

Have this information ready:
     1. Description of parts
     2. Part Numbers
     3. Prices
     4. Dimensions where needed
BEFORE you call us please.

Make sure you are in the catalog area for your kind of piano--
Such as Grand Pianos,
Full Uprights, Spinets, etc.

If you are confused, call us for assistance.

If we do not answer the phone, we are probably here-- Just leave a message- we will return your call (it may not be the same day).
:-)



A reed organ is old and not very clear in tone. But, it has the sound of the days of Little House on the Prairie. The old clap board white churches of America of 150 years ago have reed organs.

But, the reed organs of the old parlors had an impressive gallary standing up nearly to the ceiling. There, the crystal dishes from Ireland were on display. The mirror reflected the gas lights around
the room.

The sound of a well restored reed organ is one of peace and warmth.

EXHAUSTIVE WORD INDEX OF THE WHOLE SITE:

   Search this site or the web        powered by FreeFind

  Site search Web search



Turn off the music here





PUMP (REED) ORGAN SUPPLIES

Part Description:                                                                                                           Part Number            Price


Stops-  Black enamel finish, without face

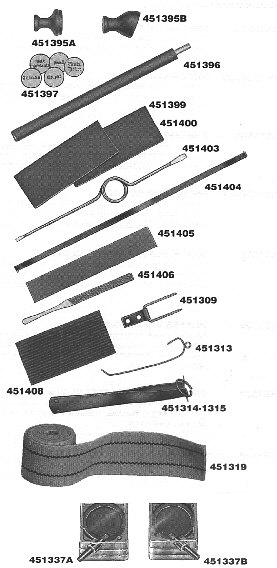

      Straight-  Each  451395A  in graphic       SH722           $  5.85
      Straight-  Dozen 451395A in graphic       SH722         $  62.42
      Beveled-  Each  451395B in graphic        SH723           $  7.85
      Beveled-  Dozen 451395B in graphic       SH723        $  62.42

Stop Knob Faces
      Celluloid, 7/8 inch diameter 451397 in the graphic
      CLICK HERE
             to see listing of knob faces.

Stop Knob Rods-
       Try saying that in a hurry  :-)
       Black enamel, 9/16 inches diameter
       7 inches long with shoulder
       451396 in the graphic                             DA449           $  4.90 ea.
              Dozen
                                           DA449           $ 36.00

Bellows Valve Flap- Leather- Pair
        2-1/4 inches wide by 14 inches long      DA440            $ 14.80 / pair
       2-3/4 inches wide by15 inches long       DA441            $ 16.50 / pair

"T" Handle Heavy Duty Reed Hook      SS201            $ 10.00





Reed Scraper-
      For tuning pump organ reeds-- 451404 in graphic                                                          SH714             $  17.85

Reed Slip-
      Stainless Steel                                                                                                              451405             Not Available

Reed File-                                                                                                                        451406             Not Available

Reed Organ Pallet Rods-
       3/16 inch diameter by 5 1/4 inches long                                                                      SH706                 $   1.00 ea.
       100 rods                                                                                                                    SH706                 $  18.00


Reed Organ Valve Springs-  Spring loads the Pedal bellows
      3 1/2" long  451313A in the graphic                                                                            SH719-A           $ 2.10 ea
      4 1/2" long 451313-B in the graphic                                                                           SH719-B            $  2.10 each

Reed Organ Pedal Hinges-  451309 in the graphic                                                         SH726              Not available

Reed Organ Wood Barrel Shaped Rollers

Used on old pump organs instead of casters-- Set of four--                                           SH701              $ 16.00

Reed Organ and Player Piano Bellows Springs-

Outward pressure-- If in doubt, replace them.
      May come with ring attached to make installation easier.
               8 lb. Thrust-  8" long-  451314 in the graphic                                                      SH8008            $  12.90

6 lb. Thrust-  6" long-  451314 in the graphic                                                      SO206              $  35.75

12 lb. Thrust- 12" long-  451314 in the graphic                                                   SO210              $ 43.95

20 lb. Thrust-  12" long-  451314 in the graphic                                                  SO220               $ 54.75

30 lb. Thrust-  12" long-  451314 in the graphic                                                  SO230              $  55.95

Reed Organ and Player Piano Bellows Springs-

       Inward pressure-  8 lb, 8" long-  451314 in the graphic                                         SH0880               $  11.90
              Inward pressure- 5 lb, 8" long                                                                              SH0881               $ 10.90

Reed Organ pedal webbing-  2 inches wide
       Connects pedals to pumping bellows.
       Used as hinges on bellows also-

Sometimes used to connect pedals to bellows. 451319 in the graphic above               SH716             $  2.00 / foot

Reed Organ Pedal Mats-- 6-1/2 inches by 10-1/2 inches-- Rubber-- Pyramid grid           DA1055          $ 14.35 per pair
      4 Inches by 10 inches
SH607A           $ 10.45 per pair

Old Part Number as in graphic above 451408

Used Ivories- We have a limited supply of 1 3/4 inch used ivory key top heads for pump organs              $   6.00 ea

Reed Organ Sharps--
       Humped Back-- 3-1/2 inches long                                                                             DA433             $ 4.80 ea.


Reed Organ Pedal Return Spring
        9 inches long, 8 lbs. Outward pressure                                                                        DA287            $ 22.65

Reed Organ Punchings---Red wool felt, 3/8" diam., .050" thick, with wire hole; oer 100      SH830         $ 6.50



PNEUMATIC, BELLOWS, AND RESERVOIR CLOTH
Used in Reed, Organs

GLUE, COATINGS, AND LUBRICANTS

Other Lubrication and Finishing Products




VACUUM PUMPS





ORGAVAC Reed Organ Vacuum Pumps


Model ARO-6
(1/8th hp) 2 ½” suction for
up to 6 sets of reeds
23 lbs - 11" x 11" by 12" high
Shipping weight- 23 lb.

Price $ 354 plus shipping






Model ARO-16
(1/2 hp) 4 ½” suction for
up to 16 sets of reeds
44 lbs - 13” x 14” x 15 ½” long
Shipping weight- 44 lb.

Price $ 549 plus shipping

Lee Silent Reed Organ Suction Units

Our Lee Units completely eliminate tiresome foot pumping while at the same time improving the performance of almost any reed organ. These compact units are easily installed and need not alter the organ’s appearance. Sizes are available to efficiently power the small parlor organs and melodeons as well as the larger church types (Estey) with sub bass, tremolo and couplers.

They have sturdy reliable motors with specially designed aluminum fan assemblies made for these units. They are precision balanced and shock-mounted in insulated enclosures for vibration-free operation. Flanges, flexible duct, hardware and under-keyboard switch (wired into the unit) are all supplied, together with detailed instructions for installation. Everything you need is included.

International shipments (Except Canada)--
Unit is wired for 220-240 volts-- Price: $ 574
You must attach your mains plug to the two wire AC power cord
Payment only by PayPal or bank check in US$
Add 3% for transaction fees
Only Unit ARO-16 is exported.
ARO-6 is 110 volts 60 cycles only.
ARO-16 is 110 or 240 volts, 50 / 60 cycles if rewired.


A1127 Delron Flanges
Our flanges are available in four sizes 4”, 3”, 2 ½” for use with flexible duct and 1 ¼” for vacuum hose. All are supplied with gaskets. A reasonably-priced alternative to aluminum flanges In stock for same day shipment. SEND MAIL for prices

SHIPPING:
Expect high shipping costs overseas on ARO-16 units.

Examples:
USA-- Up to $ 40 UPS Ground
- "Lower 48"
Europe and the UK-- $ 180 Air Delivery-- $ 66 Surface Mail

We will NOT refund your customs cost on any pump
you have to return for any reason, even if it is defective.
Defective products must be returned at your expense,
and we will repair them and return them at our expense.
Damaged products will not be repaired or refunded.
Do not order please if you are not sure of these conditions.

Because of the possibility of abuse to these units,
they are warranteed ONLY to function properly on delivery.
Once in use, all warrantees cease.



BOOKS ON REED ORGAN RESTORATION

DA/B-85--RESTORING AND COLLECTING ANTIQUE REED ORGANS
By HORTON PRESLEY
A 310 page paperback that is a step-by-step guide to finding, repairing,
tuning, and restoring these priceless antiques. The most authoritative
and easy to understand book on the subject that is in print today.
                                               $38.50

SH1679 --   PIANO TUNING
By J. CREE FISCHER

Paperback 5-1/4" x 8", 201 pages 17 lessons starting with notes on the
general construction of the piano, regulating and repairing, setting the
temperament, the study and practice of piano tuning, and also tuning
and repairing reed organs. Finally a lesson on Professional Hints.
                                             $  17.50

SH1673-- THE REED ORGAN: ITS DESIGN AND CONSTRUCTION
By H. F. Milne

This 168 page soft-bound book details a vast amount of information of how reed
organs are constructed. It is a practical guide for craftsmen with instructions for
making new reed organs and chapters included on tuning and voicing.                                         $ 32.00

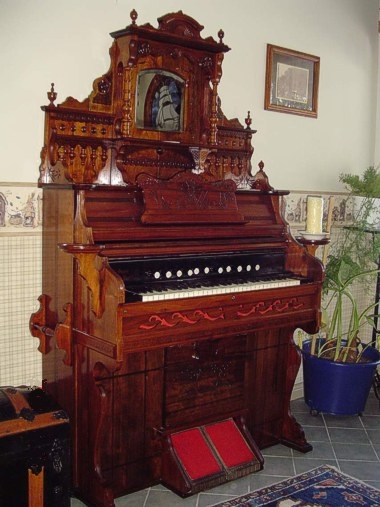

Reed Organs Restored by our Customer

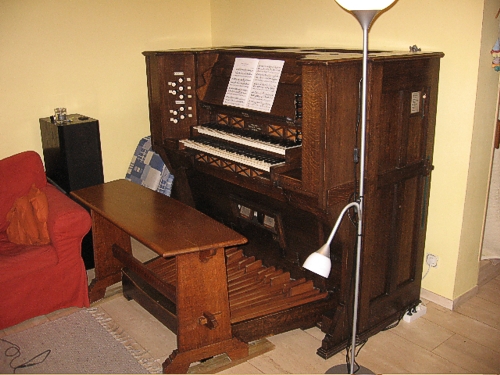

Restored by Thomas Becher
of Saarbruecken, Germany

It appears that Thomas had to make
a bench and foot pedals for the organ.

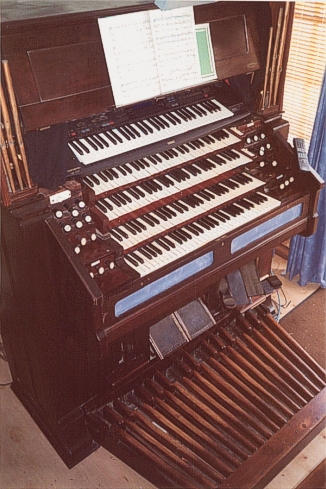

Estey Hybrid

Here is an amazing and impressive
conversion of an old Estey combo.

"You might be interested in seeing
my Estey organ which I have put
tegether. 3 manuals of Eastey and
2 of electronic."

Colin Adamson

Estey three manual and
Yamaha PSR 8000
Yamaha PSR 500 MIDI

ON/OFF THUMB PISTON Pivot points Swell
to Great MECHANICAL COUPLER MECHANISM.
3 TOE PISTONS AIR TRUNKING SNARE DRUM
& CYMBAL & Sustain TO EXT.SOURCE PEDAL WORK COUPLED
TO 1ST AND 2ND MANUALS 3 SWELL PEDALS AND MIDI’D
TO 5TH MANUAL FOR 1, 2, AND 5.

Comment by Steve Van Nattan
So, it can be done, and it looks very classy.
Let's see another one soon from YOU.






ALSO, SEE--

PLAYER PIANO PARTS AND TOOLS--
Many items are interchangeable with your reed organ.

LEATHER FOR MANY APPLICATIONS
Used in Player Pianos and Pump, or Reed, Organs

We buy old electric organ vacuum tubes SEND MAIL with number
on the side of your tubes. We will have them tested and let you know
which ones we will buy after you mail them to us. They must test
at least 85% good for us to buy them.
